Ultrasonic Spot-Cutting Tool with Edge Sealing

Ultrasonic Spot-Cutting and Edge Sealing System

(Also known as carpet cutter, high-speed point-contact fabric cutter, or inline cutting module)

The ultrasonic spot-cutting system combines cutting and edge sealing in one powerful unit.

It offers:
✅ Point Precision – Cuts and seals exactly at the contact point.
✅ High Speed – Supports continuous cutting up to 80 m/min.
✅ Versatile Mounting – Fits both static and moving cutting lines.
✅ Heavy-Duty Performance – Suitable even for carpet and tarpaulin cutting.

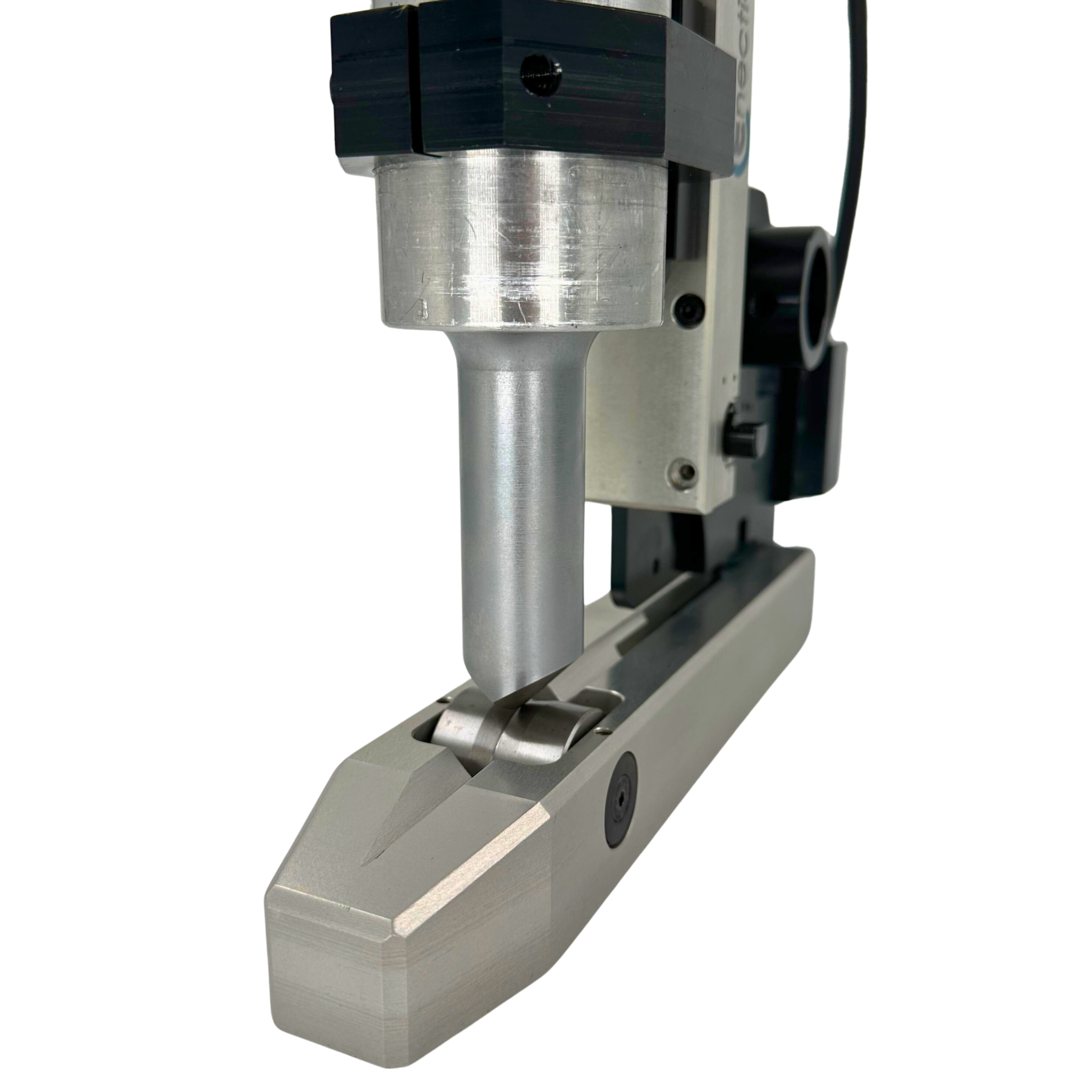

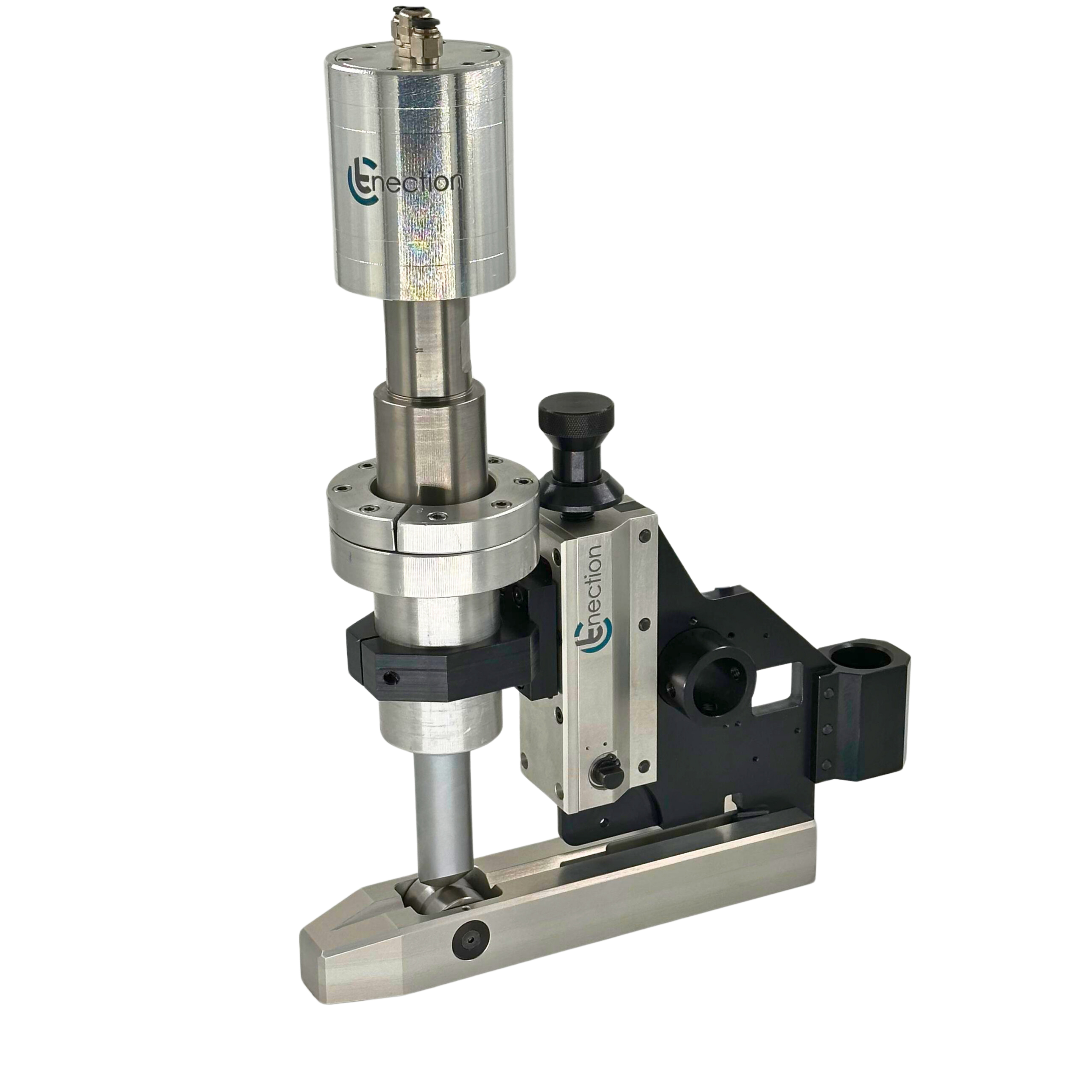

Ultrasonic Spot-Cutting and Edge Sealing System with 90° angled horn, optimized for woven and technical fabrics — up to 80 m/min.

This high-performance ultrasonic cutter is designed for simultaneous cutting and edge sealing of technical fabrics at the exact point of contact. It features a 90° angled blade made of hardened chrome-plated steel and a high-performance titanium transducer, delivering sharp, clean, and sealed cuts with no fraying or distortion.

Thanks to a press system developed by Tnection, the device ensures stable and repeatable performance under continuous high-speed operation — even on heavy-duty woven materials such as FIBC fabrics, carpets, tarpaulins, and shade nets. Cutting speed can reach up to 80 m/min, depending on material thickness and density.

The system is available in two versions:

• As a standalone cutting unit

• Or integrated into a moving/servo-driven cutting platform for inline use

Modular and customizable, this solution fits both manual setups and fully automated lines, offering flexibility for a wide range of industries including packaging, carpet finishing, and technical textile production.
